Eclipse 3.0 - Concurrent Operations in the UI

There is a need to close on the issues regarding progress in Eclipse 3.0. The current support is adequate but we there are some remaining issues that should be addressed in order to make this new concurrency work accessible for new users, cohesive, and slick!

Operation kinds

In the following we need to distinguish between different kinds of background operations:

user initiated: long running operations: build, rebuild, checkout a project, synchronizing with the repository, exporting a plug-in, search.

automatically triggered: user operations: auto build, scheduled synchronize. These are operations that have a meaning for an IDE user.

system operations: operations that are not triggered by the user and can be considered as an implementation detail.

Issues

users need a clear indication that a long running operation has started.
users need to know when an operation has ended.
users need to know whether there are interesting new results, or new information.
users need to feel in control, i.e., see which operations are running and they can easily cancel operations
users need not be surprised by dialogs shown by a background operation
plug-ins have to consistently shows their results and progress in the same way.

Long running Operation Feedback in 2.1

In the 2.1 release the users was shown the following feedback for the different operation kinds:

user initiated long running operations: modal progress dialog
automatically triggered user operations: the only such operation was autobuild.delayed modal progress monitor in status line and global busy cursor
system operations not visible to the user (e.g. updating the Java index)
Results where made available immediatly after the progress dialog finished (e.g. Synchronize View show, compare dialog shown)

Observations: the user was often blocked but felt to be in control, i.e., they can cancel. It is clear when new information is available.

Long running Operation Feeback in 3.0

The 3.0 feedback implementation doesn't distinguish between user initiated and automatically triggered
operations:

user initiated long running operations/automatically triggered user operations:

show progress message of active job in the status bar segment

show unknown progress bar in the status bar

hovering over the progress status segment shows a window with all active jobs

double clicking the status bar segment opens the progress view

the problem is that the user only sees easily that something is going on but not what it really is.

system operations

some system operations show up in the progress status bar.

So how are the progress issues addressed in 3.0:

users need a clear indication that a long running operation has started.

no clear indication, In particular it can happen that another operation in the status bar segment "hides" the user initiated operation. The user has to hover over the status segment to verify that the operation has started.

users need to know when an operation ended

to verify that a job has really finished the use has to open the progress view.

users need to know whether there are interesting new results, or new information

Synchronize operations pop-up a dialog with an option to not show the dialog again.
auto build and build don't provide any indication when they are done.
users need to feel in control, i.e., the see what is going on and can easily cancel operations.
the user doesn't see at a glance what is going on. The status bar segment is often compressed, e.g., Performing a CV...ources: 1% done

users need to feel in control

no real progress bar, unless the user opens the progress view.
There is no affordance that there is a progress view.
canceling requires many more steps than in 2.1 with a modal progress dialog:

open the progress view
select the job
select cancel from the context menu.

users need not be surprised by dialogs shown by a background operation

Currently some CVS operations prompt with a modal dialogs at the end of an operation (e.g. Synchronize complete, Compare, Merge). This interrupts the users workflow.

plug-ins have to consistently shows their results and progress in the same way.

in the sdk plug-ins are showing progress in different ways, search showing progress in the view's title bar and has a cancel button, synchronize doesn't.

Solutions and Alternatives

The following proposal distinguishes between user initiated and automatically triggered operations.

USER INITIATED OPERATIONS

You don't always want to run an operation in the background. The user should be in control whether an operation runs in the background. I often know that I want to wait until an operation is finished (e.g. checkout a project). In particular, I don't want to poll whether an operation is finished.

Therefore the suggestion is to give the user control over whether an operation should be run in the background.
This should not be done in a preference, but as follows:

the operation starts, but initially it is shown with a "classic" modal progress dialog.
the dialog provides a new option to run in the background
the dialog offers a "don't ask me again" check box (not included in the screenshot below):

Once the user decides to run the operation in the background it is critical that the progress message (including cancel) is still visible. Options:

make the progress dialog non-modal (as it is done in explorer). The dialog should become an "accumulating" progress dialog, i.e., if more than one operation is running, each of them should be shown in the dialog.
show the status message in one of the result views. For example, the build progress would show at the top or bottom of the problems view. Search already shows progress in the view's description ([running] "filx.txt" found 1).

AUTOMATICALLY INITIATED OPERATIONS

Consistent with the 2.1 solution an automatically initiated operation should be non-invasive, i.e., not show a progress dialog. However, they still need to show, that an operation has started, is in progress, and when it is done. One suggestion to show a fixed indicator for each of these operations in the status line (in the Eclipse SDK there is only auto build, and Synchronize.)
This can be a compact indicator. For example, for auto build this indicator should show that a build is in progress,
whether it has identified problems. Similarly, the Synchronize indicator (for scheduled synchronize operaitons )would show whether there are conflicts. It could be a similar indicator as is used in the overview ruler of the Java editor, for the error status of a single compilation unit.

Double clicking the indicator will reveal the result view, i.e., for a build the problems view. Hovering over the indicator shows information like the number of errors, or the number of conflicts for a scheduled synchronize. The progress of an automatically initiated operation should be shown in the accumulated progress dialog/control, but it should not automatically reveal it.

SYSTEM OPERATIONS

The current Progress view should become a Jobs view, that is a debugging aid for plug-in developers. It is not intended for the end-user,
smiliar as Show View>PDE Runtime>Plug-in Registry.

Summary

users need a clear indication that a long running operation has started.

For user initiated actions the modal progress dialog shows up.

job creators decide if job is defined as User.

users have the option of running in the background which will collapse down into the progress status line
there will be a preference for *always* running in the background

For automatically triggered actions the dedicated status indicator shows the information that an operation has started.

jobs can be scheduled via a view and views will show busy hint - will work with multiple workbench windows
views can be interested in a certain job familly

users need to know when an operation ended

the progress dialog is dismissed
the views tab changes from italic to either bold (if interesting changes) or back to normal (if no changes).

users need to know whether there are interesting new results, or new information

this isn't addressed by the above. One possible solution is to show the arrival of new interesting information in the view tab (e.g. new errors etc.) by bolding its label. The new information indication is removed when the view is activated.
Open issue though: how does this work with multiple workbench windows?

users need to feel in control, i.e., they see what is going on and can easily cancel operations.

a full progress monitor with a cancel button gives the user control.
views that are busy (tab is bolded) users can cancel the background job in the context. Views decide if they want to support the cancel button. No generic support form the UI workbench.

users need not be surprised by dialogs shown by a background operation

should improve the #requestInUI() support to be less obstrusive
plug-ins should start using the #requestInUI() and provide feedback to the UI team.
proposal is to remove IProgressService#requestInUI - nobody is using and far away from being real.

plug-ins have to consistently shows their results and progress in the same way.

if a view is affected by a background job, it only makes sense that the view's context can be used to see the progress and cancel the operation.
Decide if title bar status and a cancel button is good pratice
Alternative is to have a re-usable progress widget that could be used to embed progress in a view.

Meeting Summary 2004-03-31

Attendees: Mike Wilson, Jean-Michel Lemieux, John Arthorne, Tod Creasey, Erich Gamma, Michael Van Meekeren, Andre Weinand

First dynamic team meeting. We reviewed the items listed in the summary section and have agreed on the following work to improve the background job support (some items don't have names - these are decisions that we're made but don't have an immediate action item):

(Tod and Michael) Add support for showing a modal dialog when a user job is run.

The dialog will allow the user to 'run in the background' (e.g. the default button) at which point the dialog will collapse into the progress status line. Once collapse there won't be a way to get the dialog back (related to improved look and feel for progress view).
The dialog will also have a details button that will show the other active jobs.
There will be a workbench preference for always running jobs in the background.
(optional) jobs will be able to know if they are being run in the modal dialog and may decide to skip certain prompts in that case

(Erich) Improve look and feel of progress view

Move away from the tree view and instead provide a similar UI than the progress dialog (e.g. including progress indicator).
Erich is to prototype

(Erich) Investigate showing progress control in a view
(Tod and Michael) Add affordance in the progress status line for the progress view

some ideas included adding a job count, but for the record MVM doesn't think this is a good idea.

(John) Add support for the Job API so that the UI can pass additional information to the running job

This would be used to let jobs know if they are being run modally.

(Tod and Michael) Improve view tab highlight support

Allow a view to highlight when an interesting job familly is run
Allow a view implementor to schedule a job in the view (this already exists but will have to work for multiple workbenc windows)
Allow a view implementor to highlight that there are interesting things in the view

We decided that IProgressService#requestInUI() should be removed as API. It isn't used and would take too much effort to make usable for 3.0 As a side effect we won't have a non-intrusive notification API in 3.0, and background jobs will have to bug the user with modal dialogs or another domain specific mechanism.
Cancellation support can be added to a view (e.g the search view) if it makes sense. There will not be any workbench support for automatically adding a cancel button.

Meeting Summary 2004-04-01

Attendees: Mike Wilson, Jean-Michel Lemieux, John Arthorne, Tod Creasey, Erich Gamma, Andre Weinand

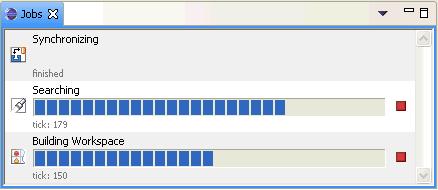

New progress view

Erich had prepared a demo of an improved progress view. There were some discussion points about support from Core and UI to implement this for real.

(John) Job icon will be passed via the new Job properties API. A default icon will be available when no icon is available.
The view could leverage jobs that return IStatus.INFO and display additional text for those finished jobs. IStatus (e.g. can be obtained via Job.getResult() or IJobChangeListener.done(Job, IStatus)).
(Tod) Erich needs an an example of how to hook this into the existing progress support in the workbench.
(Optional) could provide an API so that a job could provide an action that would 'go to' the results for the job.

If a job can block a user initiated action the job must be a "USER" job.
(Tod) Searching for markers should not acquire locks or instead use the new job API to isBlocking. Then just auto-cancel the job to allow the user initiated job.
(John) New API on job so that a job can determine if it's blocking a modal job (Job.isBlockingModal).
Status shouldn't be at 0% too long. Why, it should be at least some number larger than zero. PR these cases.
View progress consistency

(Jean-Michel) cancel button should be made available in the view.

(Jean-Michel) italitize labels for busy indicators instead of changing font color. (Synchronize View will be updated)

guideline for views - half-busy can't be default because we don't want to enforce it but UI has support for it via the IWorkbenchSiteProgressService.

By next week we should have a hooked-up progress view with the required APIs from core to display icons and pass-in the properties. Tod should have a prototype of the modal 'run in background' dialog as well as the job familly support for the workbench parts.

Meeting Summary 2004-04-01

Job equals USER.
Wizards - will be happy with showing the dialog for USER jobs, lower priority for enabling the progress indicator in wizards.
Italic font support in viewers (57425)
Job famillies
schedule via the site, run the job with belongsTo()
Progress View
- progress groups
- INFO status of jobs
Bolding of views (if focus bold remove)
Italic support similar than bolding (view can set busy)
